ALL THE PICKUPS I MAKE are identical to the 65 year old pickups of the 50's -
they do not require anything different then they have for 65 years running ok -
Black wire is Ground, White wire is Hot, all magnets are SOUTH UP-on topside of pickup.
they spun CLOCKWISE - only my Tele® necks and the occational RW/RP Strat®
Middle are NORTH UP Counterclockwise -- YOU CAN WIRE them NINE WAYS TO SUNDAY-
nothing new under the sun - these are Clones and Vintage - I did not re-invent them or
alter any requirments, ok

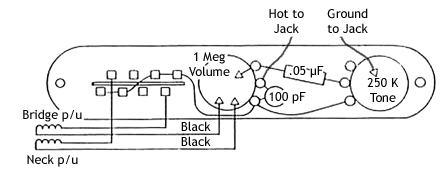

HERES A LINK TO lots of Deaf Eddie's Wiring Drawings

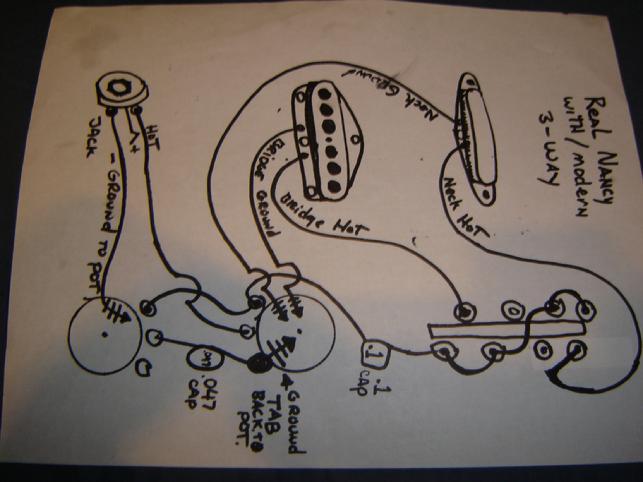

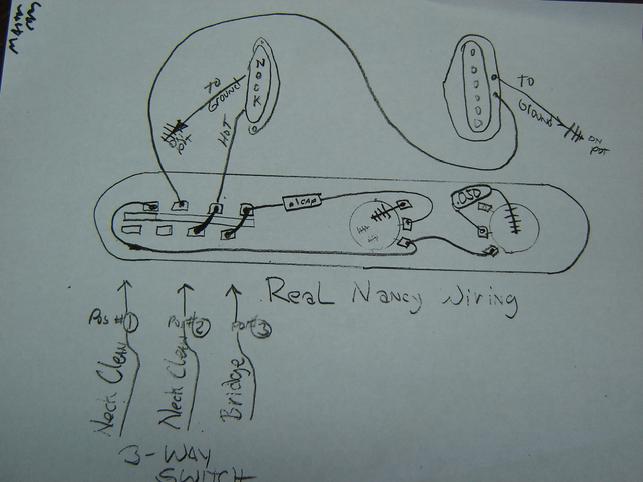

Above is The actual wiring as found in Roy Buchanans 1953 T-guitar
that he nicknamed "Nancy" - be sure to hook up the input jack as normaly done
on all the schematics - so the hot from the jack goes to the center lug on the
volume pot. and the black gets grounded to the back of a pot.

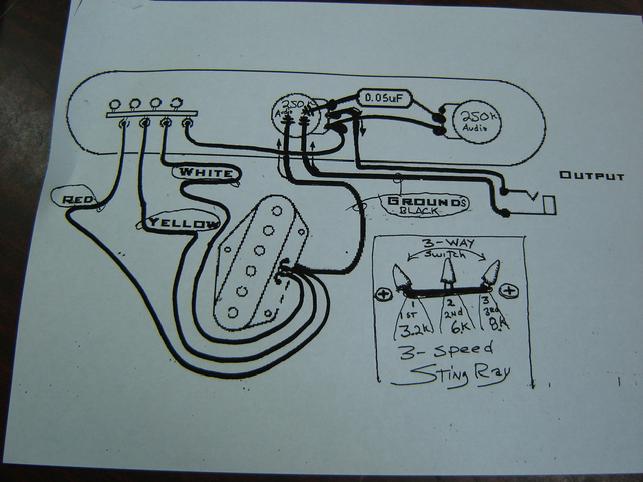

3-Speed Stang Ray - uses the stock
control plate - 3-way -for ES-Q-
Or for T=-guitars,

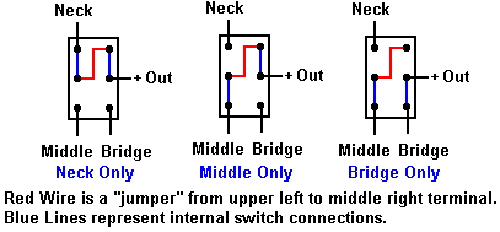

Mini Toggle switch, these will also work on 3-taps,
see new*drawing at bottom of page below,....
*2-taps are all I offer now~
no longer 3's
Tele Is A Registered trademark of Fender FMIC, which I have no affilation

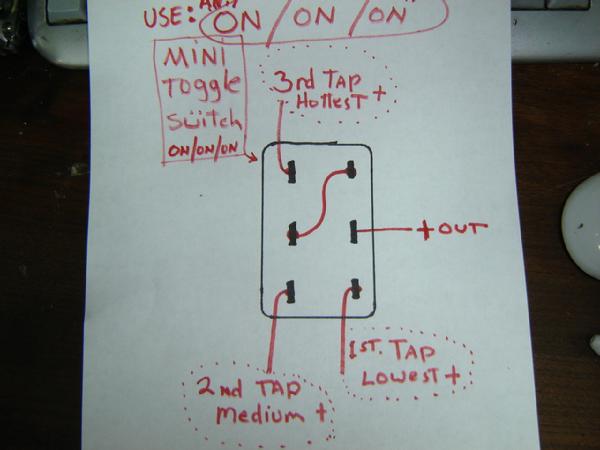

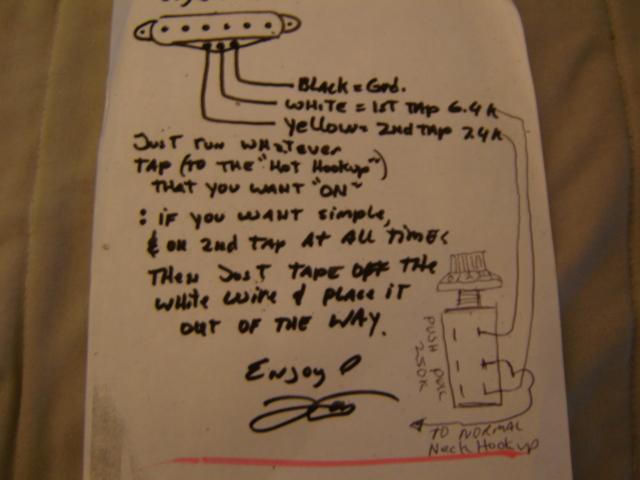

3-tap pickup / using a mini toggle
THIS ugly Yellowed Drawing =
IS THE WORLDS BEST MOD

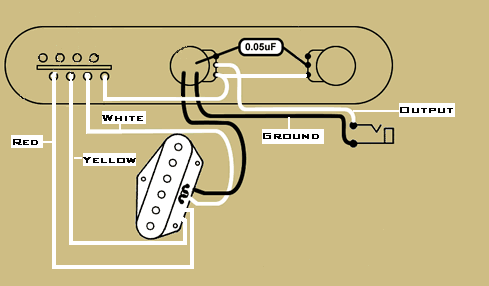

for getting that ESQIURE® like Treble Boost on you guitars!

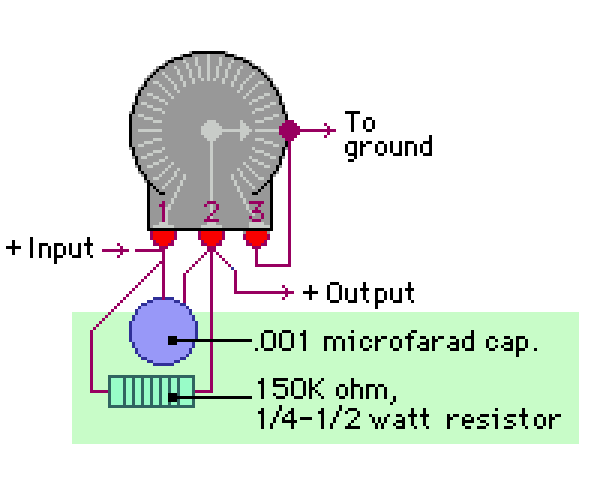

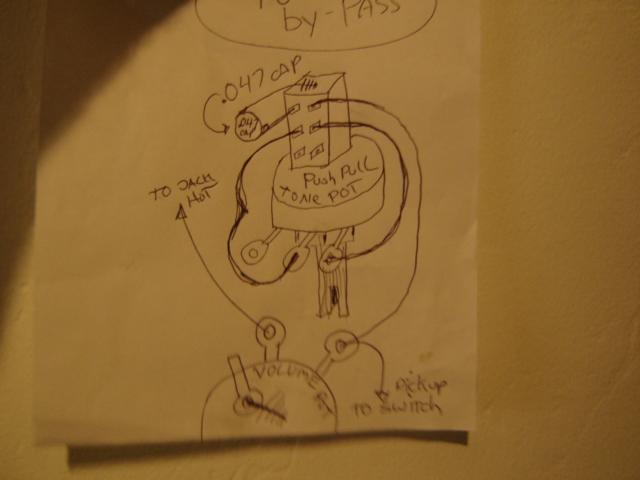

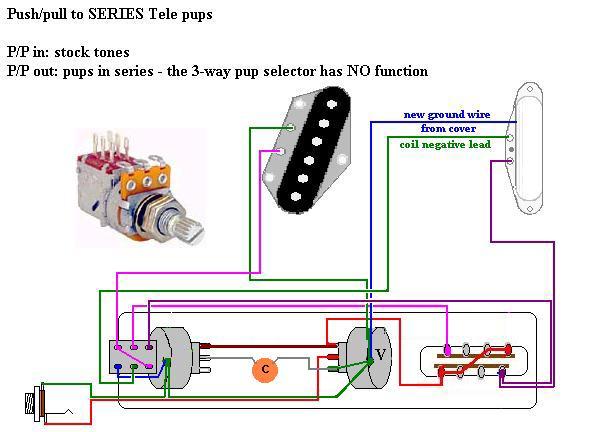

TONE BY PASS / PUSH PULL POT
